[Background Introduction of Prototype]

There is a kind of special loading truck called Skip Loader, which can be traced back to the 1950s when countries around the world began to develop and produce specialized garbage and waste cleaning vehicles to replace the traditional manual garbage loading and unloading cleaning methods. The popularity of hydraulic lifting technology greatly improves the efficiency and comfort of garbage cleaning vehicles. Skip Loader garbage cleaning truck, as a kind of cleaning equipment that uses hydraulic lifting technology, has received extensive attention and application.

Later, the loading truck with this kind of mechanism extended from the main function of loading waste and garbage to the field of self-loading and unloading equipment machinery and other large goods. Later, people referred to the trucks carrying this kind of loading mechanism as “Skip loader”or"Folding arm loaders".

After the introduction of JXmodel's several series of models mounted on the truck-mounted crane, we have accumulated a lot of experience and the support of fans in the field of hydraulic equipment. After in-depth development, we are proud to introduce our new product for 2023: "Skip Loader: JX-VL18U-F2000/K3363 (kit version)", allowing players, fans, and friends to enjoy the fun of hydraulic machinery models, and also to obtain deeper pleasure in assembling such a complex model by themselves. Now let's learn about the information of this new product.

[Product Configuration Parameters]

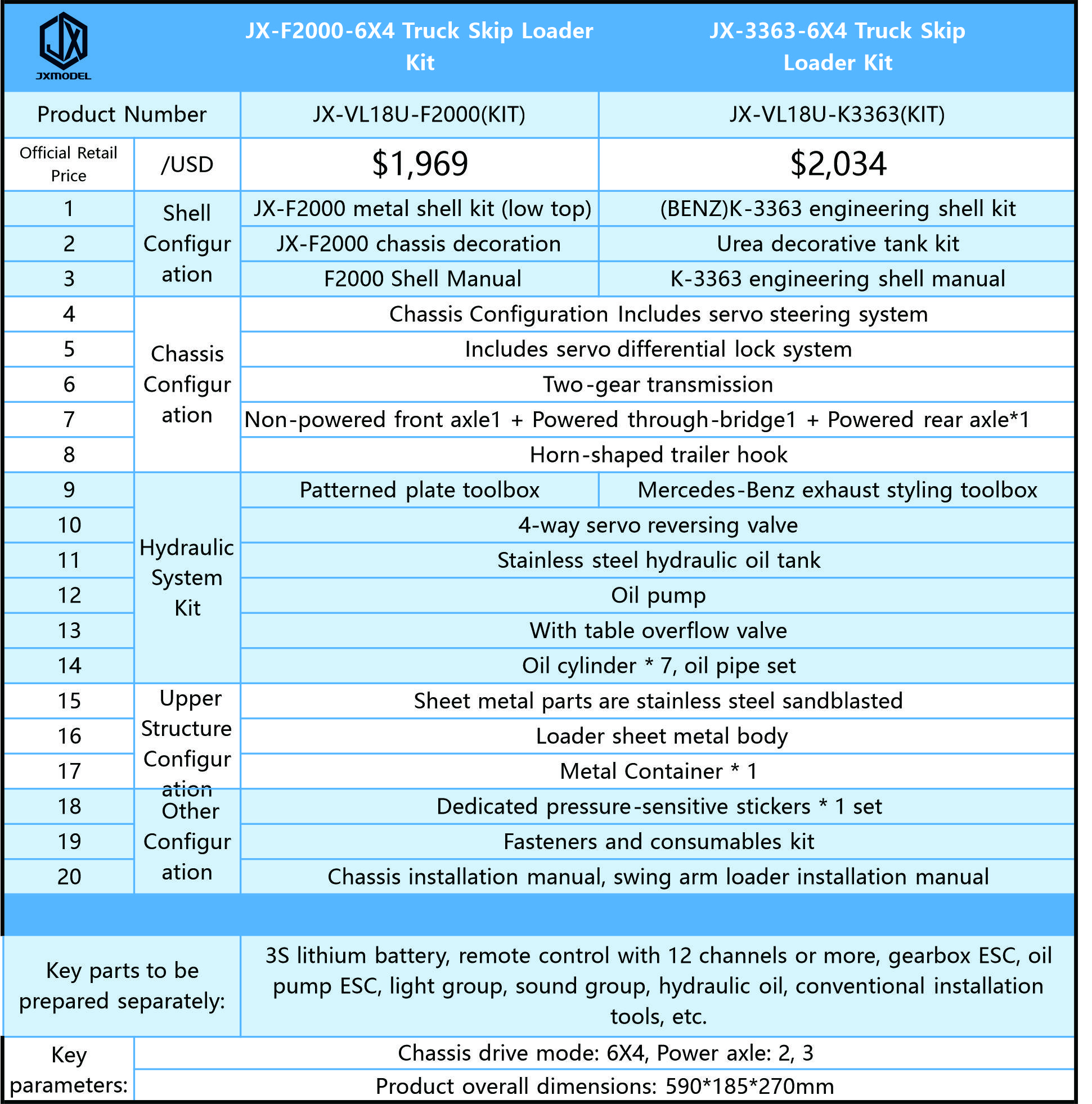

This pre-sale will provide players with two options for the vehicle shell, and the whole vehicle kit parts will be shipped without painting. Please refer to the table below for details:

The JX-VL18U series Folding arm loader model is a 1/14 scale metal simulation hydraulic remote control model. This loader model is based on JOAB's Skiploader VL18U (Folding arm loading and unloading 18-ton lifting and stretching cargo board), a product developed deeply by JXmodel team. The function and appearance details have a high degree of reduction. With strict and precise sheet metal design and production, this product is a must-have annual new product for hydraulic machinery enthusiasts.

△JX-VL18U-K3363

△JX-VL18U-F2000

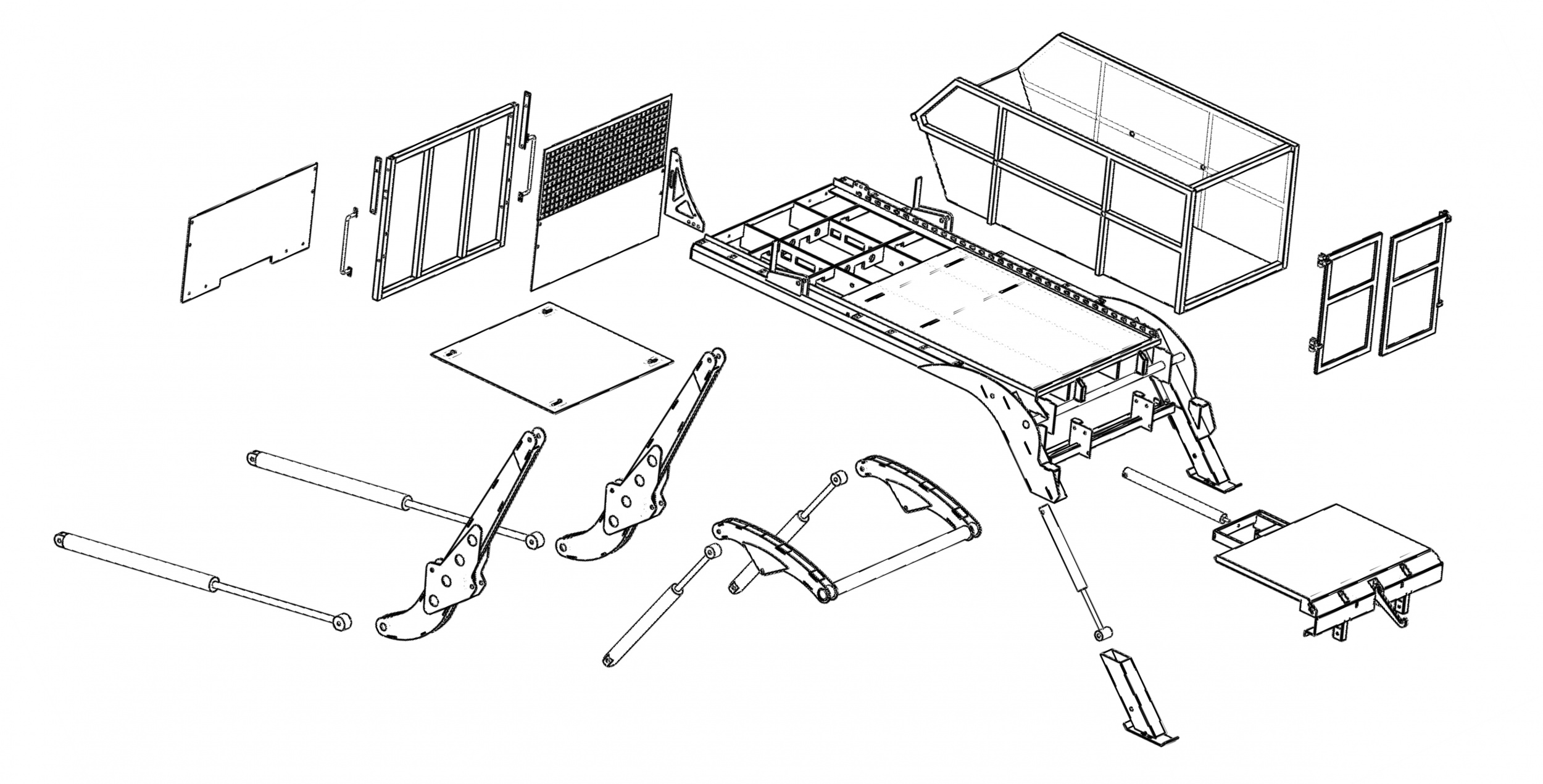

[Upper-loading Function Introduction]

The hydraulic loader is driven by the high-performance oil pump mounted in the chassis toolbox through a four-way servo valve to drive the two Folding arms of the loader to achieve parabolic lifting and loading and unloading. The third drive drives the hydraulic support legs at the tail to achieve stable support during loading and unloading, and the fourth cylinder is hidden in the truck chassis, extending the cargo board backward through the hydraulic cylinder, increasing the total cargo space and allowing for more goods to be loaded or carrying JX's subsequent small-sized container to achieve the hidden skill of carrying two buckets of goods on one truck.

[The container Function]

The conical design allows for longitudinal stacking of hoppers. The Folding arm lifting and the cargo board's tail discharge hook limit the function of container tipping and dumping. The front end of the container has a couple doors and lock design, which can open and close the door, simulating the effect of entering the stack for dumping and cleaning the material.

【Introduction to Chassis Configuration】

The chassis of the two loading vehicles are basically the same, with slight differences in the head beam support and platform board fixing brackets matched with the tractor head. The F2000 metal shell configuration features an aluminum low roof. In addition, the 3363 model has been upgraded in terms of chassis mounting components for the exhaust and air tanks, and urea tank assembly for the Mercedes-Benz truck in addition to the difference in the shell.

This model is equipped with a two-speed gearbox as the power system and uses a 6X4 drive mode with rear two-axle drive. The first axle is equipped with a non-powered steel plate suspension, and the second and third axles are equipped with a power-penetrating bridge and rear power bridge with Folding suspension. The front wheel steering system and differential lock system are factory-fitted with a servo. A horn-shaped towing hook is also pre-installed at the tail beam position for easy expansion of towing. The only things the player needs to prepare are the 3S power battery, hydraulic oil, electronic control for the gearbox and oil pump, as well as sound and lighting components for expansion, which allows them to enjoy the fun of assembling and playing!
